Juki RS-2 Pick and Place Machine

Original price was: $68,000.00.Current price is: $65,000.00.

JUKI RS-2 Pick & Place Machine is a high-speed, high-accuracy SMT placement solution designed for flexible and scalable electronics manufacturing. With advanced vision systems, fast changeover capability, and support for a wide range of components, the RS-2 delivers exceptional productivity, precision, and reliability for medium to high-volume SMT production lines.

High speed of 50,000CPH

By positioning the laser sensor closer to the board and reducing travel time from pick-up to placement, the one-head mounter achieves an optimal speed of 50,000 CPH in its ideal conditions

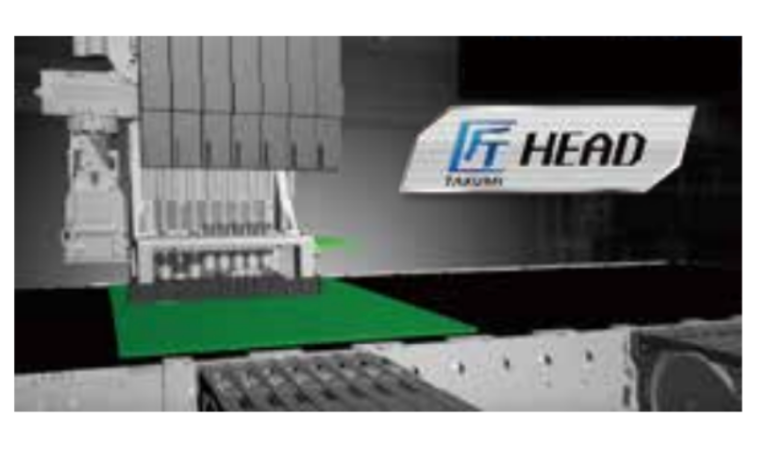

TAKUMI Head

This 8-nozzle “TAKUMI Head” accommodates components of varying heights, from the smallest to the largest, ensuring optimal
speed and accuracy.

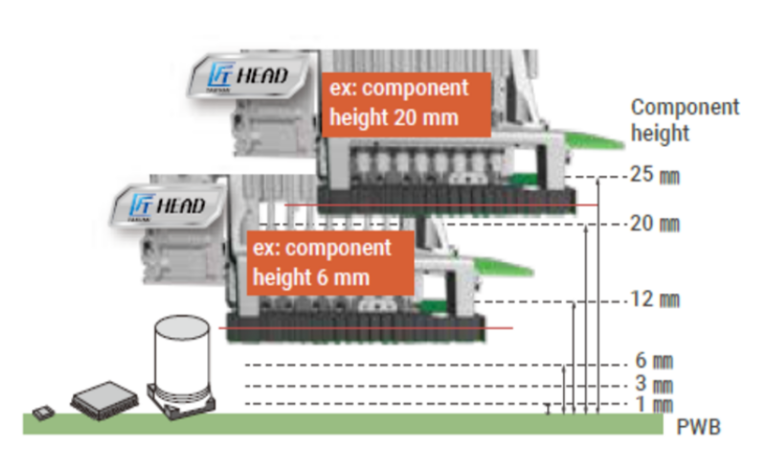

Component height can be selected from six levels: 1, 3, 6, 12, 20, and 25 mm.

High Precision

Detects lead floating and BGA ball deformation to prevent the placement of defective components. High-precision coplanarity checks enhance product reliability.

Component Management

Top production efficiency is achieved by continuous monitoring of component consumption and communication with the Automated Component Storage and Transport System.

112 feeder mounting

The compact, lightweight, and slim design of the RF feeder supports up to 112 feeder units (front and rear combined),
enabling high-efficiency production.

Wide component range

Supports components from sizes as small as 03015 up to 74 mm square or 50 mm x 150 mm, with placement heights accommodating components up to 25 mm

Description

JUKI RX-8 Specifications

JUKI RX-8 Pick & Place Machine is engineered for high-speed, high-precision SMT production,
offering excellent flexibility and stable performance for medium to high-volume manufacturing.

Specification	Details
Board Size	50 × 50 mm to 510 mm × 450 mm
Component Height	3 mm
Component Size	0201 to □5 mm
Placement Speed (Optimum)	Chip: 100,000 CPH
Placement Accuracy	±0.04 mm (Cpk ≥ 1)
Feeder Capacity	Up to 56
Power Supply	3-phase AC 200V / 220V / 430V
Apparent Power	2.1 kVA
Operating Air Pressure	0.5 ± 0.05 MPa
Air Consumption (Standard)	20 L/min ANR (during normal operation)
Machine Dimensions (W × D × H)	998 mm × 1,895 mm × 1,530 mm
Mass (Approx.)	1,810 kg (with fixed bank) / 1,760 kg (with bank changing)

Note: Specifications may vary by configuration. Please confirm exact details based on your machine setup.

Additional information

Weight	1200 kg
Dimensions	120 × 100 × 80 cm
Brand	Desen
