| Parameter | DS-Pioneer T | DS-Pioneer S |
|---|---|---|
| Operation Size | Max: 400 × 400 mm Min: 50 × 50 mm |
Max: 300 × 350 mm Min: 50 × 50 mm |
| Work Efficiency | 1.0 s / pcs | 0.8 s / pcs |
| Acceleration (XY) | 2.0 G | 3.0 G |
| Moving Speed (XY) | 1500 mm/s (intelligent optimization control) | 2500 mm/s (intelligent optimization control) |
| XY Accuracy | 0.01 mm | |
| Vision Resolution Ratio | 130W / 200W Industrial Camera Gigabit Ethernet NIC |
|
| Mounting Precision | ±0.05 mm | |
| Conveyor Speed | 600 mm/s | |
| Width Adjust | AUTO | |
| Operation System | Windows 10 | |
| Operation View | Chinese / English | |
| Dimension | L900 × W1200 × H1450 mm | L850 × W1200 × H1450 mm |
| Weight | 800 kg | 1350 kg |
| Alarm | Audible and visual alarm | |
| Scanner Interface | RS-232 | |
| Communication Interface | SMEMA | |
| Voltage | AC 220 V, 50–60 Hz | |
| Air Pressure | 0.5 – 0.7 MPa | |
| Power | 1.5 kW | 2.0 kW |
-14%Hot
Solder Paste Printer DGL Series
Original price was: $48,000.00.$45,000.00Current price is: $45,000.00.
Automatic Glue Dispenser Machine
Original price was: $22,000.00.$18,000.00Current price is: $18,000.00.
Automatic Label Placement machine
Original price was: $28,000.00.$24,000.00Current price is: $24,000.00.
Automatic label placment machine– DS-Pioneer Series
Models: DS-Pioneer T | DS-Pioneer S
Features
- Solves problems of manpower consumption, inaccurate attachment, and slow speed for advanced manufacturing factories.
- Fully automatic online attachment positioning system using CCD digital camera.
- Mark point scanning, each point confirmation, and BadMark correction to ensure attachment accuracy.
- Transmission track width is automatically adjusted.
High speed of 50,000CPH
By positioning the laser sensor closer to the board and reducing travel time from pick-up to placement, the one-head mounter achieves an optimal speed of 50,000 CPH in its ideal conditions

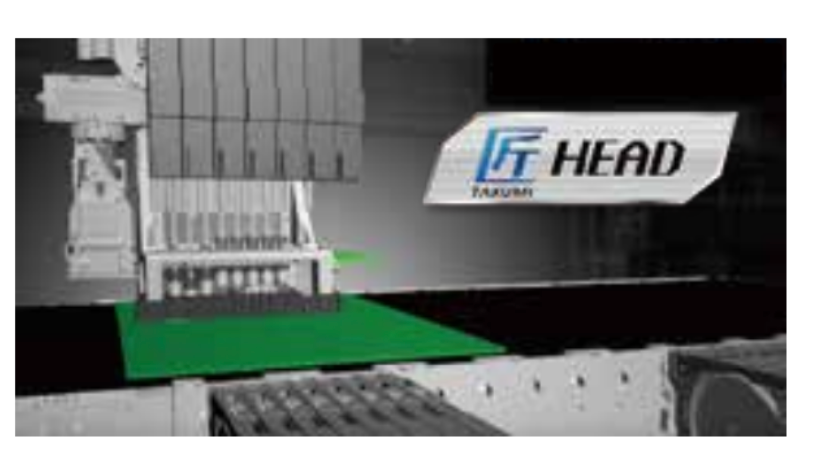

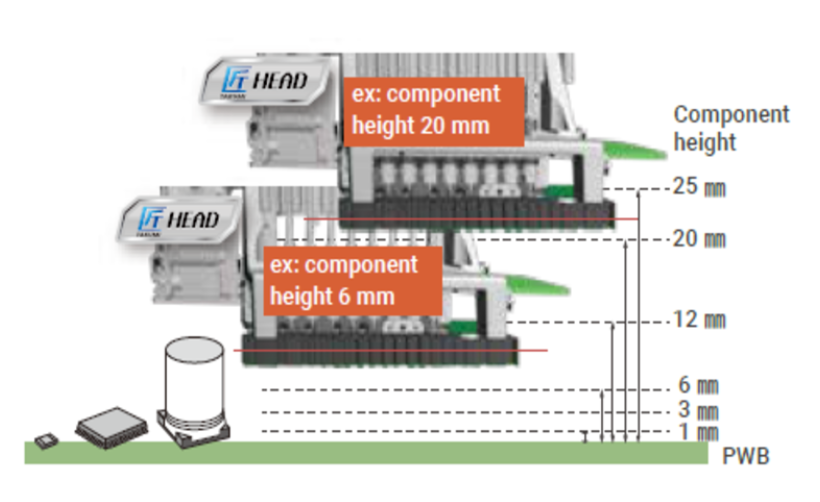

TAKUMI Head
This 8-nozzle “TAKUMI Head” accommodates components of varying heights, from the smallest to the largest, ensuring optimal
speed and accuracy.
Component height can be selected from six levels: 1, 3, 6, 12, 20, and 25 mm.

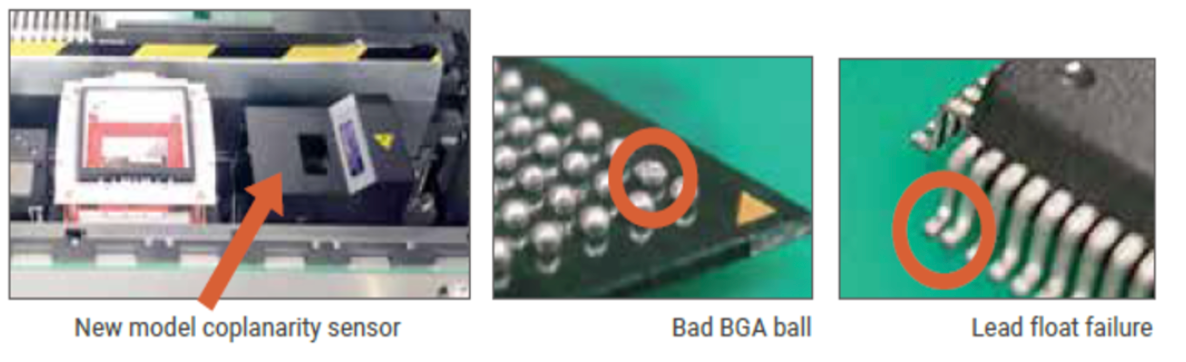

High Precision
Detects lead floating and BGA ball deformation to prevent the placement of defective components. High-precision coplanarity checks enhance product reliability.
Component Management
Top production efficiency is achieved by continuous monitoring of component consumption and communication with the Automated Component Storage and Transport System.

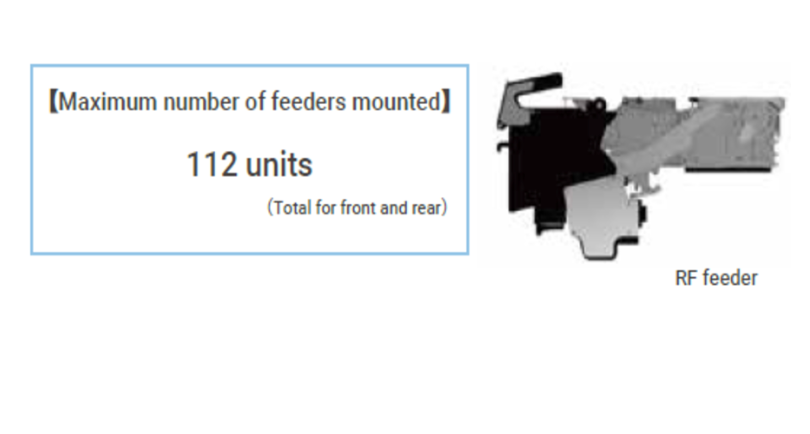

112 feeder mounting
The compact, lightweight, and slim design of the RF feeder supports up to 112 feeder units (front and rear combined),
enabling high-efficiency production.

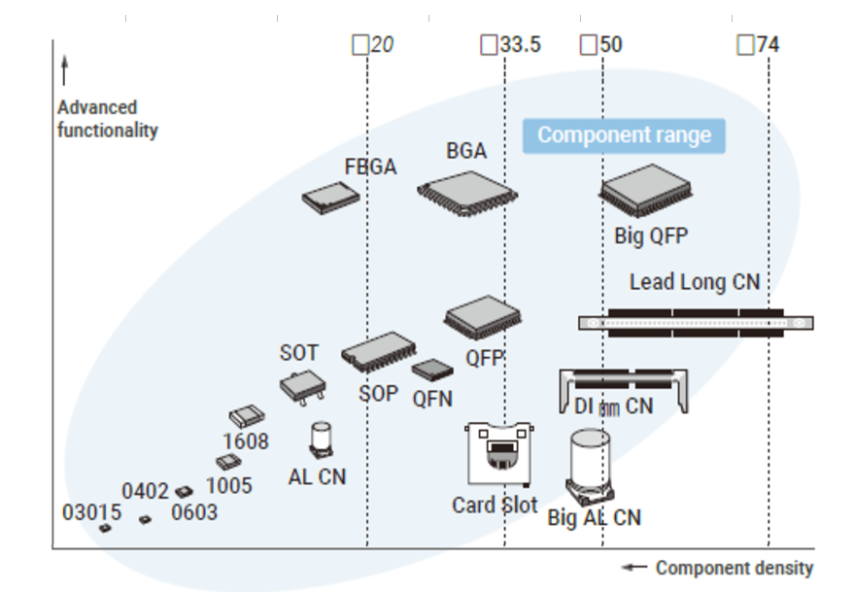

Wide component range
Supports components from sizes as small as 03015 up to 74 mm square or 50 mm x 150 mm, with placement heights accommodating components up to 25 mm
Manufacturing Electronics
Range of Applications
Primary Applications
PCB Assembly Manufacturing - The core use of reflow oven is used after the Pick and Place machine, This includes everything from consumer electronics (smartphones, tablets, computers) to industrial equipment and automotive electronics.
Description
Additional information
| Weight | 1200 kg |
|---|---|
| Dimensions | 120 × 100 × 80 cm |
| Brand |
Desen |
Reviews (0)
About brand
Desen Precision is committed to delivering high-end intelligent electronic equipment, advanced automation solutions, and innovative robot applications for the electronics manufacturing industry. As a trusted SMT equipment supplier, we provide precision assembly solutions that help manufacturers worldwide achieve superior production efficiency and quality.
